Engineering

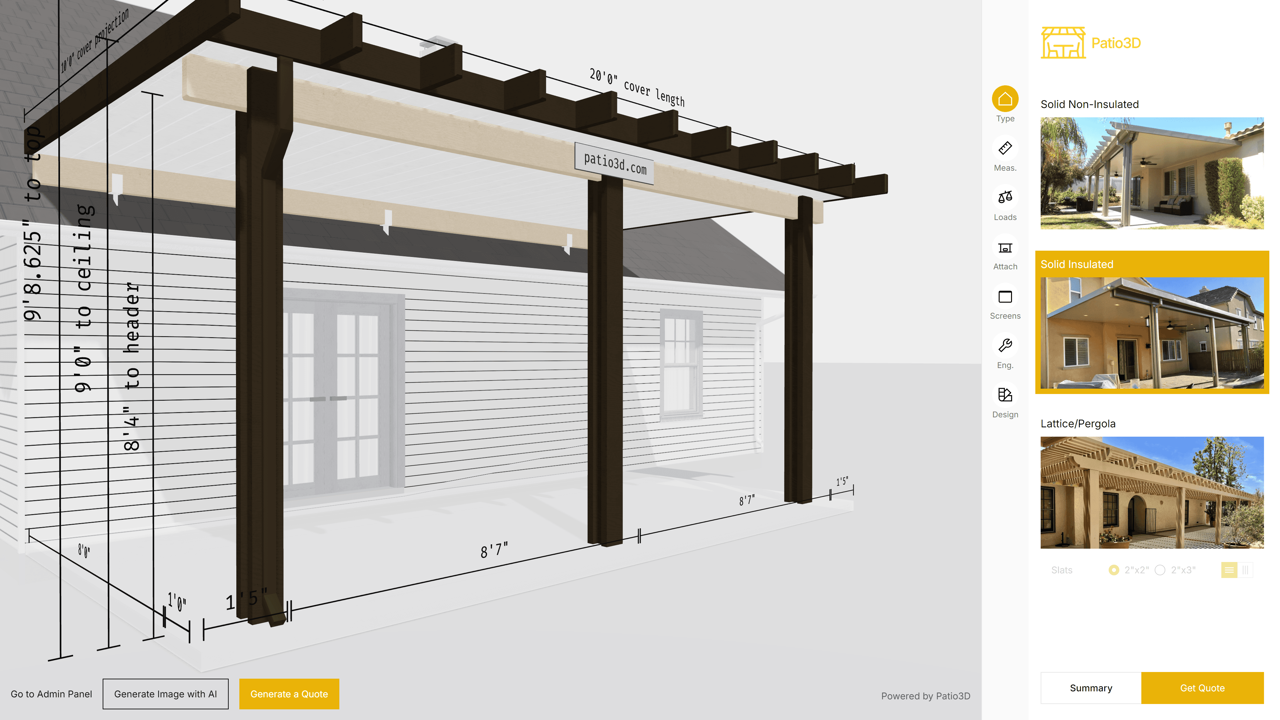

Did you know Patio3D uses ICC-ES-based engineering?
Did you know?
Patio3D has full engineering integration for Alumawood and Four Seasons, based on the ESR-1398 (2021 IBC), ESR-1953 (2021 IBC), and ESR-2229 plans, all approved for use nationwide!
Accurate engineering means customers can explore unlimited styles and sizes with perfectly accurate 3D renders — instantly!
Patio3D is aware of every structural detail in the ICC-ESR reports.
Such as:
- For on-slab installations, the reaction force at each post must not exceed 750 lbf, as required by the building code.
- The maximum side overhang can’t exceed 25% of the post spacing.
- The maximum panel or rafter overhang can’t exceed 25% of the clear span.
- At least one horizontal dimension (projection or width) of Freestanding covers shall be less than 30'.
- A minimum 3.5' concrete slab is required with constrained footings.
- Footings are required if the patio's width is less than 100% of its projection up to C150, or less than 110–120% at higher wind loads.
- When a constrained footing is required, the larger uplift or constrained footing from the header is used.
…and many more!
Patio3D is built for for all budgets, markets, and priorities.
For the same design, customers can generate the most cost-effective engineering build, the one with the fewest posts, no footings, or the maximum open space.
Patio3D also includes an advanced pricing book (optional).
Just fill in your prices, and it will automatically generate a quote that resembles a manufacturer’s quote thanks to its precise engineering!
Patio3D supports regional options (such as different colors) and regional pricing!
You can try Patio3D for free! Live and branded on your website within one day — with no back and forth or work required on your end!
If you have any feature requests, feedback, or questions you’d like to share, you can send them anonymously here:
👉 https://patio3d.com/contact-us
Our team is always eager to hear from you!
